Demo Python app using Minikube¶

Simple echo container 🗳¶

Create a Dockerfile

Dockerfile

FROM alpine
CMD ["echo", "Welcome to my blog"]

Build image in minikube and run the pod 🚀

Build image and run it

minikube image build -t test . # build image to minikube directly

kubectl run test-pod --image=test --image-pull-policy=Never --restart=Never

k logs test-pod #check pod logs

# below is the output
Welcome to my blog

Docker setup 🚢¶

Build an image 👷🏻‍♂️¶

docker build -f ../pathToDockerFile/Dockerfile -t demo:latest .

Run image 🏃‍♂️¶

# run image
docker run -p 5000:5000 demo # (1)

# get pid on a port num
lsof -i:port_num

kill -9 pid

# single liner to kill process on a certain port number
kill -9 $(lsof -t -i:5000)

# Remove all containers to unbind the port (Not recommended)
docker rm -fv $(docker ps -aq)

Here we are mapping the 5000 port of container to the 5000 port of host

Remove image from registry ❌¶

Before removing the image from docker registry, we need to stop and delete the container

docker ps -all            # see list of containers
docker rm CONTAINER_ID    # remove container that is running image we want to remove.

docker image ls           # list of all images
docker rmi -f IMAGE_ID    # remove the image

Generic Docker commands 🖥¶

Some important Docker commands 🛳

# Build an image from a Dockerfile
docker image build

# Show the history of an image
docker image history

# Import the contents from a tarball to create a filesystem image
docker image import

# Display detailed information on one or more images
docker image inspect

# Load an image from a tar archive or STDIN
docker image load

# List images
docker image ls

# Remove unused images
docker image prune

# Pull an image or a repository from a registry
docker image pull

# Push an image or a repository to a registry
docker image push

# Remove one or more images
docker image rm

# Remove one or more images
docker image save   #Save one or more images to a tar archive (streamed to STDOUT by default)

# Create a tag TARGET_IMAGE that refers to SOURCE_IMAGE
docker image tag

Minikube setup ⚓️¶

What is Hyperkit?

HyperKit is an open-source hypervisor for macOS hypervisor, optimized for lightweight virtual machines and container deployment. This is the default hypervisor for Minikube in Mac.

Start minikube¶

# using docker as hypervisor
minikube start --driver=docker

# enable kubelet service, if needed
systemctl enable kubelet.service

Check status 📈¶

minikube status will result in something similar as shown below

Output of minikube status is shown below

minikube
type: Control Plane
host: Running
kubelet: Running
apiserver: Running
kubeconfig: Configured

Check the nodes of minikube using

kubectl get nodes # (1)

This will show control-plane in case of minikube as whole setup is on local

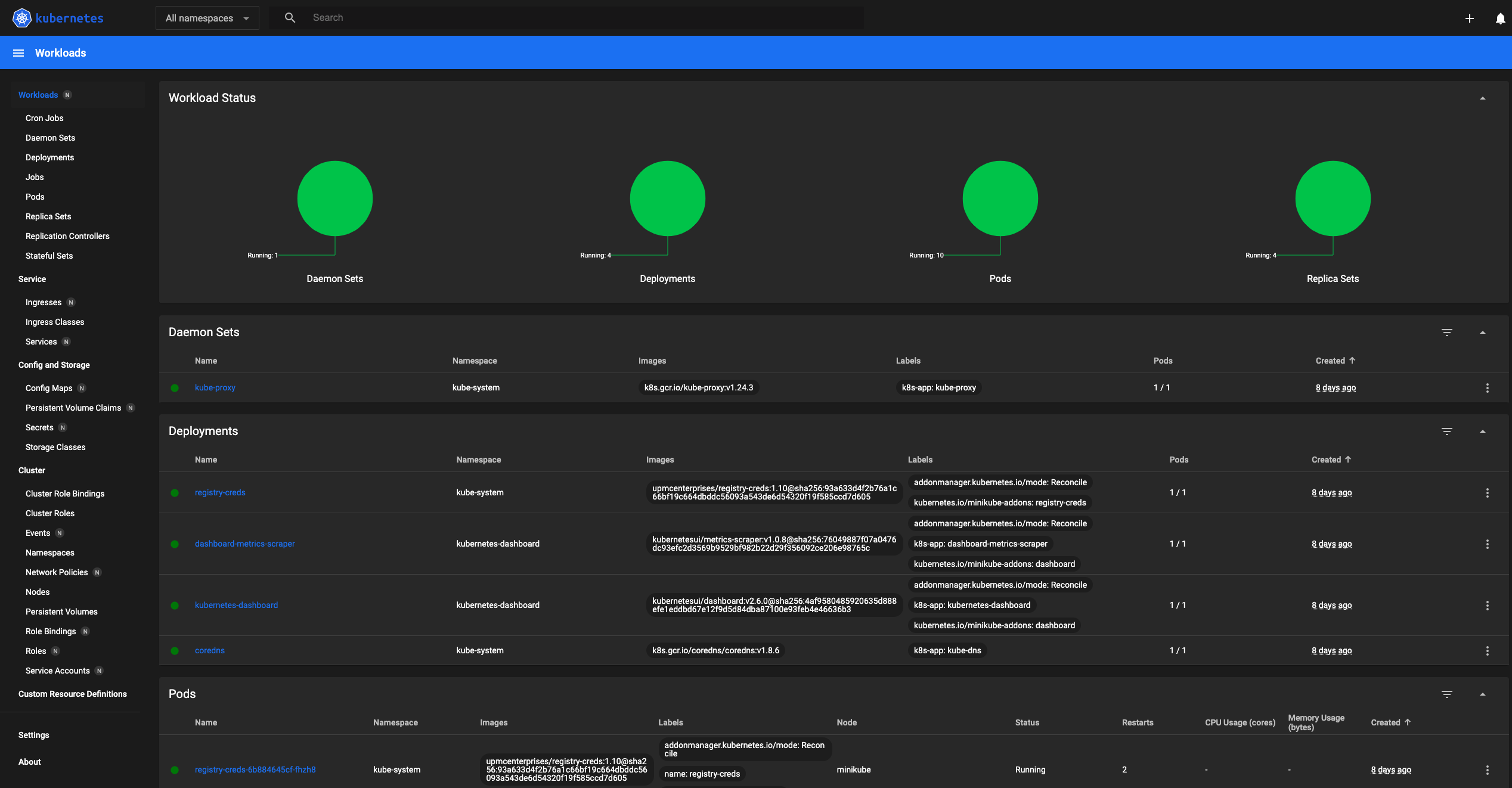

Lauch dashboard 🖥¶

This is helpful to see various resources in one place.

minikube dashboard

Registry options:¶

Get current registry

docker info | grep Regis

There are 3 options

Use existing docker resigtry
Setup a private registry
Directly build images on Minikube

1. Docker container registry¶

minikube config set driver docker # set the driver

minikube config get driver        # confirm the driver status (1)

Should get docker as output

Setup registry addon 📢¶

Steps to setup registry addon

$ minikube addons configure registry-creds # (1)

Do you want to enable AWS Elastic Container Registry? [y/n]: n

Do you want to enable Google Container Registry? [y/n]: n

Do you want to enable Docker Registry? [y/n]: y # (2)
-- Enter docker registry server url: https://index.docker.io/v1/
-- Enter docker registry username: amar
-- Enter docker registry password:

Do you want to enable Azure Container Registry? [y/n]: n
✅  registry-creds was successfully configured

GCR/ECR/ACR/Docker: minikube has an addon, registry-creds which maps credentials into minikube to support pulling from Google Container Registry (GCR), Amazon’s EC2 Container Registry (ECR), Azure Container Registry (ACR), and Private Docker registries. You will need to run minikube addons configure registry-creds and minikube addons enable registry-creds to get up and running.
Setup your own username and password

Cofigure to use Docker registry¶

If you want to create the registry on minikube's Docker then run

eval $(minikube docker-env)

What does this command do?

The command minikube docker-env returns a set of bash environment variable exports to configure your local environment to re-use the Docker daemon inside the Minikube instance.

Passing this output through eval causes bash to evaluate these exports and put them into effect.

You can review the specific commands which will be executed in your shell by omitting the evaluation step and running minikube docker-env directly. However, this will not perform the configuration – the output needs to be evaluated for that.

Enable registry addon 📌¶

$ minikube addons enable registry-creds
❗  registry-creds is a 3rd party addon and not maintained or verified by minikube maintainers, enable at your own risk.
    ▪ Using image upmcenterprises/registry-creds:1.10
🌟  The 'registry-creds' addon is enabled

check more info on https://minikube.sigs.k8s.io/docs/handbook/registry/

2. Setup private registry 🗳¶

To make docker available on the host machine's terminal

Otherwise enter in the virtual machine via minikube ssh, and then proceed with the following steps

Depending on your operating system, minikube will automatically mount your homepath onto the VM.

you'll need to add the local registry as insecure in order to use http (may not apply when using localhost but does apply if using the local hostname) Don't use http in production, make the effort for securing things up.

Use a local registry:

Create a local resigtry

docker run -d -p 5000:5000 \
--restart=always \
--name local-registry registry:2

Now tag your image properly:

Tag an image

docker tag ubuntu localhost:5000/ubuntu

Note

The localhost should be changed to dns name of the machine running registry container.

Now push your image to local registry:

Push Image

docker push localhost:5000/ubuntu

You should be able to pull it back:

Pull Image

docker pull localhost:5000/ubuntu

Now, change your yaml file to use the local registry.

3.Building on Minikube¶

minikube image build -t test_app .

Confirm it using

minikube image ls

Create K8S manifests: Generic¶

Crate a pod¶

You can create a pod if needed as shown below

create a pod manifest using dry run

kubectl run mypod --image=docker.io/library/demo:latest \
--labels app=demo-dp \
--dry-run=client -o yaml > test_pod.yaml

In this example we are directly creating a deployment, so creating a pod is not required.

Create a deployment¶

Create depyloyment using declarative commands

kubectl create deployment demo-dp \
--image=docker.io/library/demo:latest \
--replicas=1 -o yaml > dep_demo.yaml

Create a service 🍻¶

The service yaml config can be

apiVersion: v1
kind: Service
metadata:
  labels:
    app: backend
  name: backend
spec:
  ports:
  - name: api
    protocol: TCP
    port: 10000
  selector:
    app: backend

Confirm the resources¶

Check if service and deployment is created. You can check the endpoint using

k get ep # (1)

Check if endpoint is created

ssh into pod using

 k exec -it POD_ID -- /bin/sh
 ```

Now check the servcie status using

```bash
$ k exec -it POD_ID -- /bin/sh

printenv | grep SERVICE # run this command after doing `exec -it`

Sample output of printenv 📝

KUBERNETES_SERVICE_PORT=443
HELLO_PYTHON_SERVICE_PORT_6000_TCP_ADDR=10.109.182.67
HELLO_PYTHON_SERVICE_PORT_6000_TCP_PORT=6000
HELLO_PYTHON_SERVICE_PORT_6000_TCP_PROTO=tcp
DEMO_SERVICE_PORT_6000_TCP_ADDR=10.103.151.245
DEMO_SERVICE_PORT_6000_TCP_PORT=6000
DEMO_SERVICE_PORT_6000_TCP_PROTO=tcp
HELLO_PYTHON_SERVICE_SERVICE_HOST=10.109.182.67
HELLO_PYTHON_SERVICE_PORT_6000_TCP=tcp://10.109.182.67:6000
DEMO_SERVICE_SERVICE_HOST=10.103.151.245
HELLO_PYTHON_SERVICE_PORT=tcp://10.109.182.67:6000
HELLO_PYTHON_SERVICE_SERVICE_PORT=6000
DEMO_SERVICE_PORT_6000_TCP=tcp://10.103.151.245:6000
KUBERNETES_SERVICE_PORT_HTTPS=443
DEMO_SERVICE_PORT=tcp://10.103.151.245:6000
DEMO_SERVICE_SERVICE_PORT=6000
KUBERNETES_SERVICE_HOST=10.96.0.1

POC example using Fast API¶

Below are the steps to create a sample POC

Install FastAPI on local¶

Install fastapi using

$ python -m pip install fastapi uvicorn[standard]

Run server on local using

$ uvicorn demo_main:app --reload

Get access to swagger docs using

http://127.0.0.1:8000/docs

Create the FastAPI Code

Create an app directory and enter it.
Create an empty file init.py.
Create a main.py file with below code

FastAPI sample code 👨🏻‍💻

from typing import Union

from fastapi import FastAPI

app = FastAPI()


@app.get("/")
def read_root():
    return {"Hello": "World"}


@app.get("/items/{item_id}")
def read_item(item_id: int, q: Union[str, None] = None):
    return {"item_id": item_id, "q": q}

Why we need init.py?

Files named __init__.py are used to mark directories on disk as Python package directories. If you have the files

mydir/spam/__init__.py
mydir/spam/module.py

and mydir is on your path, you can import the code in module.py as

import spam.module

or

from spam import module

If you remove the __init__.py file, Python will no longer look for submodules inside that directory, so attempts to import the module will fail.

The __init__.py file is usually empty, but can be used to export selected portions of the package under more convenient name, hold convenience functions, etc. Given the example above, the contents of the init module can be accessed as

import spam

Requirements file¶

An requirements.txt is shown below

fastapi
pydantic
uvicorn

Create a DockerFile¶

Now in the same project directory create a file Dockerfile with:

Dockerfile for FastAPI 🚀

FROM python:3.9

WORKDIR /code

COPY ./requirements.txt /code/requirements.txt

RUN pip install --no-cache-dir --upgrade -r /code/requirements.txt

COPY ./app /code/app

CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "80"]

You should now have a directory structure like:

.
├── app
│   ├── __init__.py
│   └── main.py
├── Dockerfile
└── requirements.txt

Create image on Minikube¶

Create a image using the sample code

minikube image build -t test_app .

Create k8s manifests for POC¶

Using Kubectl
Using Python

Using Kubectl¶

Given the fact that we have 2 files

create_deployment.yaml
create_servcie.yaml

we can create a deployment using the following

kubectl apply -f create_service
kubectl apply -f create_deployment

Using Python¶

Install the required package

pip install kubernetes

Confirm the installation using

$ pip list | grep kuber
kubernetes                 24.2.0

Imagine that we have below service and deployment code

create_service.yaml

apiVersion: v1
kind: Service
metadata:
  name: demo-service-api
spec:
  selector:
    app: demo-api
  ports:
  - protocol: "TCP"
    port: 80
    targetPort: 80
  type: LoadBalancer

A sample deployment manifest

create_deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-deploy-api
spec:
  replicas: 1
  selector:
    matchLabels:
      app: demo-api
  template:
    metadata:
      labels:
        app: demo-api
    spec:
      containers:
      - name: demo-api
        image: fast
        imagePullPolicy: Never
        ports:
        - containerPort: 80

code to create manifests using Python K8S API

createApplication.py

from os import path
import yaml
from kubernetes import client, config
from kubernetes.client import V1DeleteOptions

def main():
    # Configs can be set in Configuration class directly or using helper
    # utility. If no argument provided, the config will be loaded from
    # default location.
    config.load_kube_config()
    k8s_apps_v1 = client.AppsV1Api()
    core_v1_api = client.CoreV1Api()

    create_service(core_v1_api)
    create_deployment(k8s_apps_v1)

    del_opts = V1DeleteOptions()
    api_client = get_custom_objects_api_client()

def create_deployment(k8s_apps_v1):
    with open(path.join(path.dirname(__file__), "demo_deployment.yaml")) as f:
        dep = yaml.safe_load(f)
        resp = k8s_apps_v1.create_namespaced_deployment(body=dep, namespace="default")
        print("Deployment created. status='%s'" % resp.metadata.name)


def create_service(core_v1_api):
    with open(path.join(path.dirname(__file__), "demo_service.yaml")) as f:
        service = yaml.safe_load(f)
        resp = core_v1_api.create_namespaced_service(body=service, namespace="default")
        resp = core_v1_api.delete
        print("Service status='%s'" % resp.metadata.name)

if __name__ == '__main__':
    main()

Create the resources using

python createApplication.py

Demo Python app using Minikube¶

Simple echo container 🗳¶

Docker setup 🚢¶

Build an image 👷🏻‍♂️¶

Run image 🏃‍♂️¶

Remove image from registry ❌¶

Generic Docker commands 🖥¶

** Minikube setup ** ⚓️¶

Start minikube¶

Check status 📈¶

Lauch dashboard 🖥¶

Registry options:¶

1. Docker container registry¶

Setup registry addon 📢¶

Cofigure to use Docker registry¶

Enable registry addon 📌¶

2. Setup private registry 🗳¶

3.Building on Minikube¶

Create K8S manifests: Generic¶

Crate a pod¶

Create a deployment¶

Create a service 🍻¶

Confirm the resources¶

POC example using Fast API¶

Install FastAPI on local¶

Requirements file¶

Create a DockerFile¶

Create image on Minikube¶

Create k8s manifests for POC¶

Using Kubectl¶

Using Python¶

Minikube setup ⚓️¶
